Step 7. Influencing OSPF DR/BDR election¶
Goals¶
The goal of this step is to demonstrate how to influence the DR/BDR election by configuring router priorities.
The OSPF DR/BDR election is based primarily on the interface priority value (0-255). Network administrators can use priorities to control which router becomes DR and BDR. This is useful for ensuring that the most capable router (e.g., with better hardware or connectivity) serves as the DR.
Configuration¶

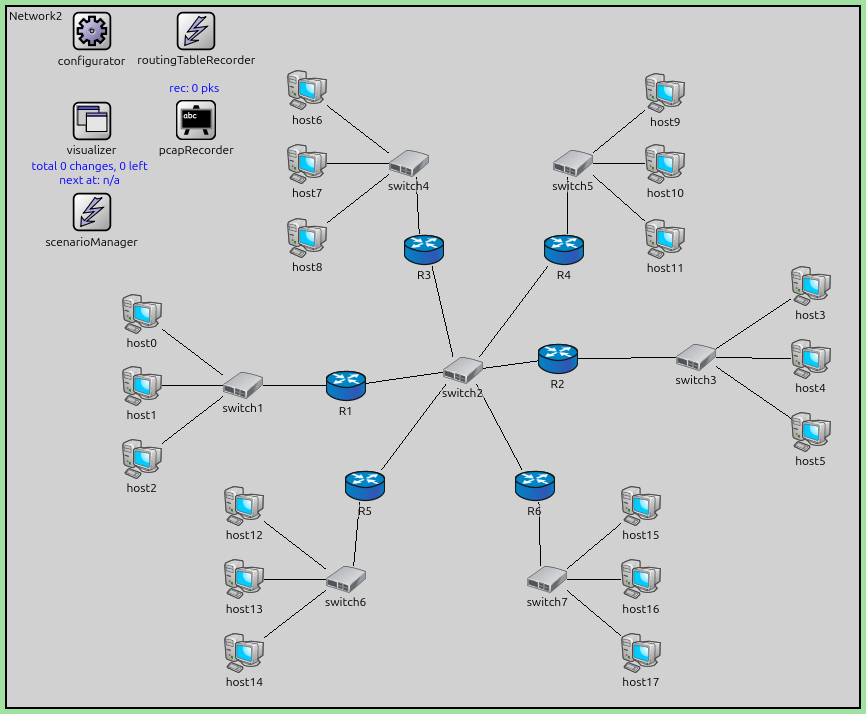

This configuration is based on Step 6. The OSPF configuration assigns different priorities to R3, making it more likely to become the DR.
The configuration in omnetpp.ini is the following:
[Config Step7]
description = "Influencing OSPF DR/BDR election"
extends = Step6
# increasing the router priority of R3
*.R*.ospf.ospfConfig = xmldoc("ASConfig_priority.xml")
The OSPF configuration:
<?xml version="1.0"?>
<OSPFASConfig xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="OSPF.xsd">
<Router name="R3" RFC1583Compatible="true">
<BroadcastInterface ifName="eth0" interfaceOutputCost='0' routerPriority="10" />
<BroadcastInterface ifName="eth1" interfaceOutputCost='0' />
</Router>
<Router name="**" RFC1583Compatible="true">
<BroadcastInterface ifName='eth[*]' areaID='0.0.0.0' interfaceOutputCost='0' />
<PointToPointInterface ifName='ppp[*]' areaID='0.0.0.0' interfaceOutputCost='0' />
</Router>
</OSPFASConfig>
Results¶
With the modified priorities:
R3 has a higher priority than the other routers.
During the DR/BDR election, R3 is elected as the DR (or BDR) based on its higher priority.
Comparing with Step 6 (where all routers had default priorities), the DR/BDR assignment changes to reflect the priority configuration.
In this simulation, R3 becomes the DR because it has the highest priority (10). Among the remaining routers (which all have priority 1), R6 has the highest Router ID, so it becomes the BDR.
This demonstrates that network administrators have control over the DR/BDR election and can engineer the network to ensure specific routers take on these roles.
Important: The DR/BDR election is NOT preemptive. If a router with higher priority joins the network after a DR/BDR have already been elected, it will not automatically replace them. The election only occurs when there is no DR/BDR, or when the current DR/BDR fails.
Sources:
omnetpp.ini,
Network2.ned,
ASConfig_priority.xml
