Step 21. Virtual link - connect two separate parts of a discontinuous backbone

Goals

The goal of this step is to demonstrate using virtual links to connect a partitioned backbone.

If the backbone area (Area 0) becomes partitioned (split into disconnected parts), OSPF inter-area routing fails because Summary LSAs can only be exchanged through a contiguous backbone. Virtual links can reconnect the backbone partitions through a transit area, restoring full connectivity.

Configuration

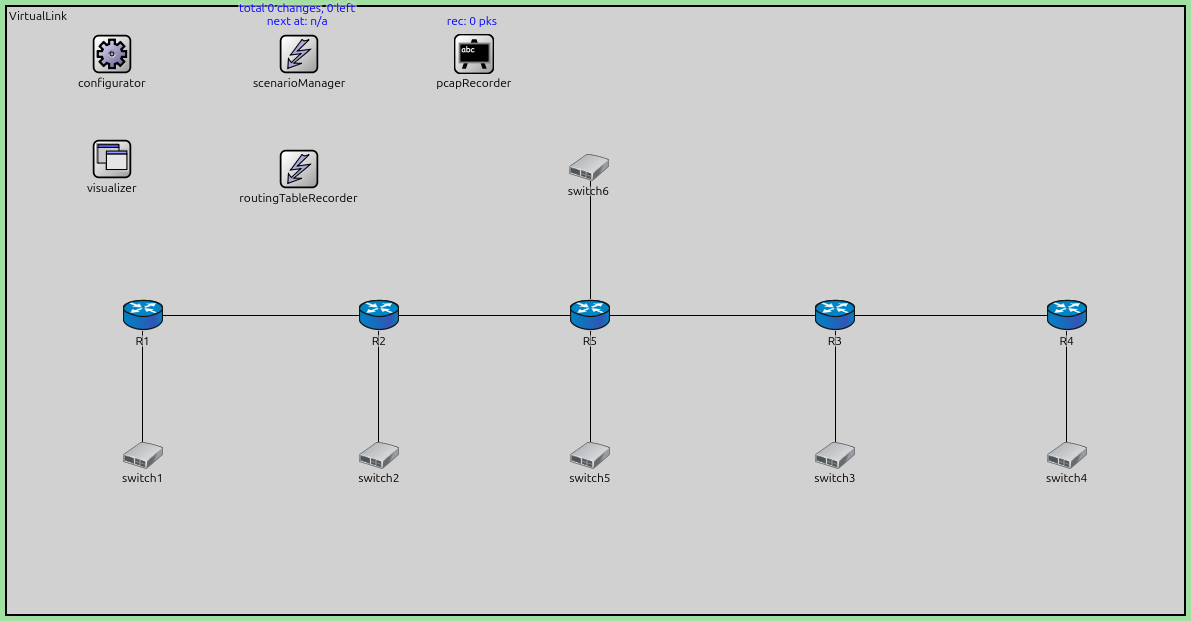

This step simulates a partitioned backbone and uses a virtual link to reconnect it.

../../../_images/VirtualLink.png

The configuration in omnetpp.ini is the following:

[Config Step21]
description = "Virtual link - connect two separate parts of a discontinuous backbone"
network = VirtualLink

*.R*.ospf.ospfConfig = xmldoc("ASConfig_Virtual_Discontinuous.xml")

*.R1.numApps = 1
*.R1.app[0].typename = "PingApp"
*.R1.app[0].destAddr = "R4"
*.R1.app[0].startTime = 60s

The OSPF configuration:

<?xml version="1.0"?>
<OSPFASConfig xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="OSPF.xsd">

  <!-- Areas -->
  <Area id="0.0.0.0">
    <AddressRange address="R1>switch1" mask="R1>switch1" />
    <AddressRange address="R1>R2" mask="R1>R2" />

    <AddressRange address="R2>switch2" mask="R2>switch2" />
    <AddressRange address="R2>R1" mask="R2>R1" />

    <AddressRange address="R3>switch3" mask="R3>switch3" />
    <AddressRange address="R3>R4" mask="R3>R4" />

    <AddressRange address="R4>switch4" mask="R4>switch4" />
    <AddressRange address="R4>R3" mask="R4>R3" />
  </Area>

  <Area id="0.0.0.1">
    <AddressRange address="R2>R5" mask="R2>R5" />

    <AddressRange address="R3>R5" mask="R3>R5" />

    <AddressRange address="R5>R2" mask="R5>R2" />
    <AddressRange address="R5>R3" mask="R5>R3" />
    <AddressRange address="R5>switch5" mask="R5>switch5" />
    <AddressRange address="R5>switch6" mask="R5>switch6" />
  </Area>

  <!-- Routers -->
  <Router name="R1" RFC1583Compatible="true">
    <BroadcastInterface ifName="eth0" areaID="0.0.0.0" interfaceMode="Passive" />
    <PointToPointInterface ifName="ppp0" areaID="0.0.0.0" />
  </Router>

  <Router name="R2" RFC1583Compatible="true">
    <BroadcastInterface ifName="eth0" areaID="0.0.0.0" interfaceMode="Passive" />
    <PointToPointInterface ifName="ppp0" areaID="0.0.0.0" />
    <PointToPointInterface ifName="ppp1" areaID="0.0.0.1" />
    <VirtualLink endPointRouterID="R3%routerId" transitAreaID="0.0.0.1" />
  </Router>

  <Router name="R3" RFC1583Compatible="true">
    <BroadcastInterface ifName="eth0" areaID="0.0.0.0" interfaceMode="Passive" />
    <PointToPointInterface ifName="ppp0" areaID="0.0.0.0" />
    <PointToPointInterface ifName="ppp1" areaID="0.0.0.1" />
    <VirtualLink endPointRouterID="R2%routerId" transitAreaID="0.0.0.1" />
  </Router>

  <Router name="R4" RFC1583Compatible="true">
    <BroadcastInterface ifName="eth0" areaID="0.0.0.0" interfaceMode="Passive" />
    <PointToPointInterface ifName="ppp0" areaID="0.0.0.0" />
  </Router>

  <Router name="R5" RFC1583Compatible="true">
    <BroadcastInterface ifName="eth0" areaID="0.0.0.1" interfaceMode="Passive" />
    <BroadcastInterface ifName="eth1" areaID="0.0.0.1" interfaceMode="Passive" />
    <PointToPointInterface ifName="ppp0" areaID="0.0.0.1" />
    <PointToPointInterface ifName="ppp1" areaID="0.0.0.1" />
  </Router>

</OSPFASConfig>

Results

With a partitioned backbone:

  1. Without virtual links, the two parts of Area 0 cannot exchange Summary LSAs.

  2. Inter-area routing between the partitioned sections fails.

  3. A virtual link is configured between two ABRs, one in each partition, through a transit area.

  4. The virtual link acts as a logical Area 0 connection.

  5. Summary LSAs can now be exchanged between the partitions.

  6. Full inter-area routing is restored.

The routing tables show that routes are successfully computed across the previously partitioned backbone using the virtual link as a bridge.

Sources: omnetpp.ini, VirtualLink.ned, ASConfig_Virtual_Discontinuous.xml
