TSNsched-based Gate Scheduling¶

Goals¶

This showcase demonstrates the TSNsched gate schedule configurator that solves the autoconfiguration problem with an external SAT solver tool.

INET version: 4.4

Source files location: inet/showcases/tsn/gatescheduling/tsnsched

The Model¶

The TsnSchedGateScheduleConfigurator module provides a gate scheduling configurator that uses the TSNsched tool that is available at https://github.com/ACassimiro/TSNsched (check the NED documentation of the configurator for installation instructions). The module has the same parameters as the other gate schedule configurators.

The simulation uses the same network as the showcases for the Eager and SAT configurators:

Here is the configuration:

[General]
network = inet.networks.tsn.TsnDumbbellNetwork
description = "TSN sched based gate scheduling"
sim-time-limit = 0.2s
#record-eventlog = true
#expected-result = "ERROR"

*.switch1.typename = "TsnSwitch1"
*.switch2.typename = "TsnSwitch2"

# client applications
*.client*.numApps = 2
*.client*.app[*].typename = "UdpSourceApp"
*.client*.app[0].display-name = "best effort"
*.client*.app[1].display-name = "video"
*.client*.app[0].io.destAddress = "server1"
*.client*.app[1].io.destAddress = "server2"
*.client1.app[0].io.destPort = 1000
*.client1.app[1].io.destPort = 1002
*.client2.app[0].io.destPort = 1001
*.client2.app[1].io.destPort = 1003
*.client*.app[*].source.packetNameFormat = "%M-%m-%c"
*.client*.app[0].source.packetLength = 1000B
*.client*.app[1].source.packetLength = 500B
*.client*.app[0].source.productionInterval = 1000us # ~8Mbps
*.client*.app[1].source.productionInterval = 500us # ~8Mbps

# server applications
*.server*.numApps = 4
*.server*.app[*].typename = "UdpSinkApp"
*.server*.app[0..1].display-name = "best effort"
*.server*.app[2..3].display-name = "video"
*.server*.app[0].io.localPort = 1000
*.server*.app[1].io.localPort = 1001
*.server*.app[2].io.localPort = 1002
*.server*.app[3].io.localPort = 1003

# enable outgoing streams
*.client*.hasOutgoingStreams = true

# client stream identification
*.client*.bridging.streamIdentifier.identifier.mapping = [{stream: "best effort", packetFilter: expr(udp.destPort == 1000)},
                                                          {stream: "video", packetFilter: expr(udp.destPort == 1002)},
														  {stream: "best effort", packetFilter: expr(udp.destPort == 1001)},
														  {stream: "video", packetFilter: expr(udp.destPort == 1003)}]

# client stream encoding
*.client*.bridging.streamCoder.encoder.mapping = [{stream: "best effort", pcp: 0},
                                                  {stream: "video", pcp: 4}]

# enable streams
*.switch*.hasIncomingStreams = true
*.switch*.hasOutgoingStreams = true

*.switch*.bridging.streamCoder.decoder.mapping = [{pcp: 0, stream: "best effort"},
                                                  {pcp: 4, stream: "video"}]

*.switch*.bridging.streamCoder.encoder.mapping = [{stream: "best effort", pcp: 0},
                                                  {stream: "video", pcp: 4}]

# enable incoming streams
*.server*.hasIncomingStreams = true

# enable egress traffic shaping
*.switch*.hasEgressTrafficShaping = true

# time-aware traffic shaping with 2 queues
*.switch*.eth[*].macLayer.queue.numTrafficClasses = 2
*.switch*.eth[*].macLayer.queue.queue[0].display-name = "best effort"
*.switch*.eth[*].macLayer.queue.queue[1].display-name = "video"

# automatic gate scheduling
*.gateScheduleConfigurator.typename = "TSNschedGateScheduleConfigurator"
*.gateScheduleConfigurator.gateCycleDuration = 1ms
# 58B = 8B (UDP) + 20B (IP) + 4B (802.1 Q-TAG) + 14B (ETH MAC) + 4B (ETH FCS) + 8B (ETH PHY)
*.gateScheduleConfigurator.configuration =
   [{pcp: 0, gateIndex: 0, application: "app[0]", source: "client1", destination: "server1", packetLength: 1000B + 58B + 12B, packetInterval: 1000us, maxLatency: 500us},
    {pcp: 4, gateIndex: 1, application: "app[1]", source: "client1", destination: "server2", packetLength: 500B + 58B + 12B, packetInterval: 500us, maxLatency: 500us},
    {pcp: 0, gateIndex: 0, application: "app[0]", source: "client2", destination: "server1", packetLength: 1000B + 58B + 12B, packetInterval: 1000us, maxLatency: 500us},
    {pcp: 4, gateIndex: 1, application: "app[1]", source: "client2", destination: "server2", packetLength: 500B + 58B + 12B, packetInterval: 500us, maxLatency: 500us}]

# gate scheduling visualization
*.visualizer.gateScheduleVisualizer.displayGateSchedules = true
*.visualizer.gateScheduleVisualizer.displayDuration = 100us
*.visualizer.gateScheduleVisualizer.gateFilter = "*.switch1.eth[2].** or *.switch2.eth[0].**.transmissionGate[0] or *.switch2.eth[1].**.transmissionGate[1]"
*.visualizer.gateScheduleVisualizer.height = 16

Note

There are two changes in this configuration compared to the Eager and SAT configurator showcases, due to limitations in the SAT solver tool:

The traffic is half as dense as in the Eager and SAT configurator showcases. Currently, the tool can only find a solution to the autoconfiguration problem if all transmissions are completed within the gate cycle (though it should be possible for the individual frame transmissions to overlap).
12 Bytes need to be added to the packet size in the XML configuration to account for the inter-frame gap.

Results¶

The following sequence chart shows a gate cycle period (1ms):

Note that the frames are forwarded immediatelly by the switches.

The following sequence chart shows frame transmissions, with the best effort gate state displayed on the axes for the two switches.

Note that the gates are open so that two frames can be transmitted, and the frame transmissions and the send window are closely aligned in time.

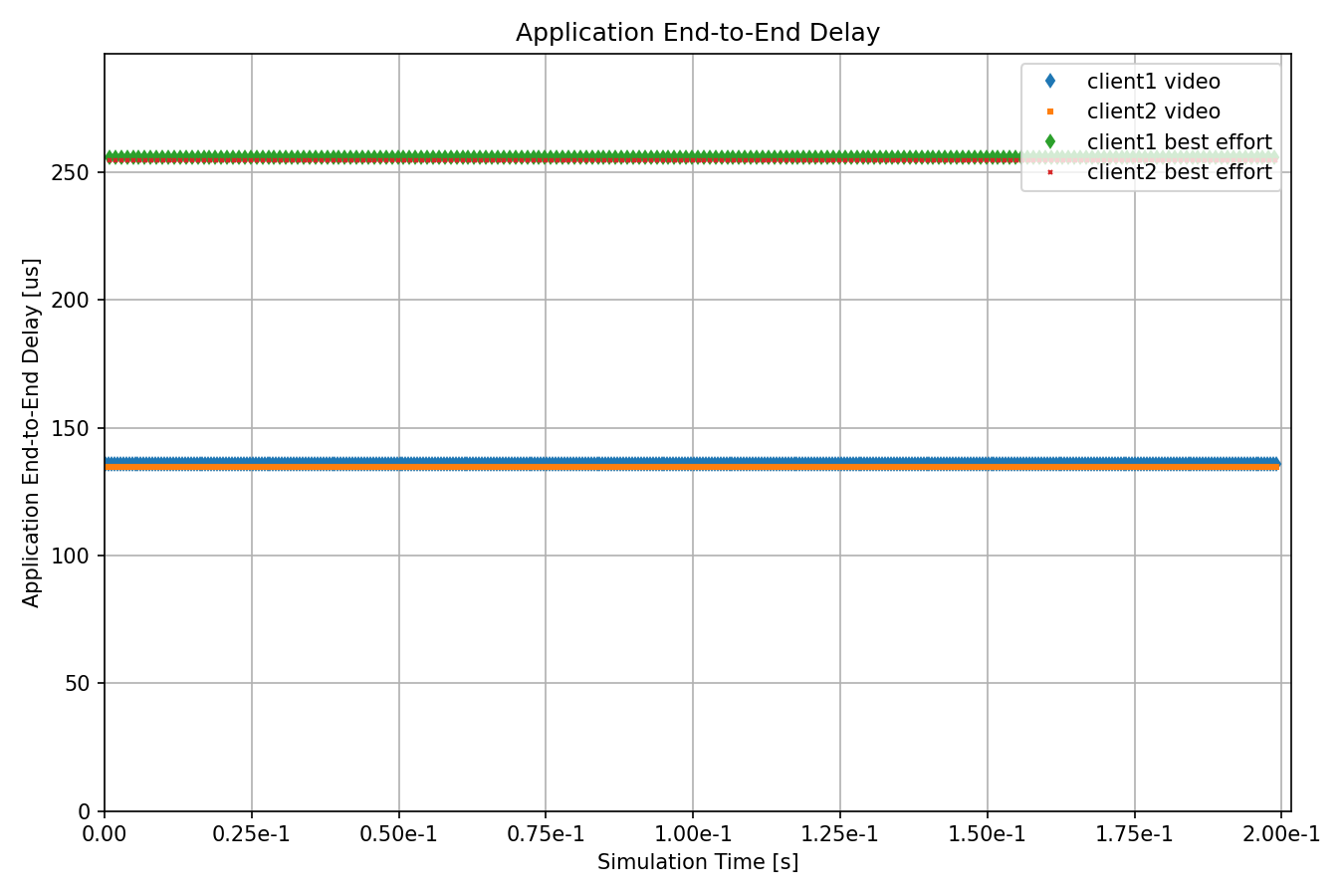

The following figure shows application end-to-end delay for the four streams:

All streams have the minimal possible delay, as they are forwarded immediatelly.

Sources: omnetpp.ini

Try It Yourself¶

If you already have INET and OMNeT++ installed, start the IDE by typing omnetpp, import the INET project into the IDE, then navigate to the inet/showcases/tsn/gatescheduling/tsnsched folder in the Project Explorer. There, you can view and edit the showcase files, run simulations, and analyze results.

Otherwise, there is an easy way to install INET and OMNeT++ using opp_env, and run the simulation interactively. Ensure that opp_env is installed on your system, then execute:

$ opp_env run inet-4.4 --init -w inet-workspace --install --chdir \
   -c 'cd inet-4.4.*/showcases/tsn/gatescheduling/tsnsched && inet'

This command creates an inet-workspace directory, installs the appropriate versions of INET and OMNeT++ within it, and launches the inet command in the showcase directory for interactive simulation.

Alternatively, for a more hands-on experience, you can first set up the workspace and then open an interactive shell:

$ opp_env install --init -w inet-workspace inet-4.4
$ cd inet-workspace
$ opp_env shell

Inside the shell, start the IDE by typing omnetpp, import the INET project, then start exploring.
